Description

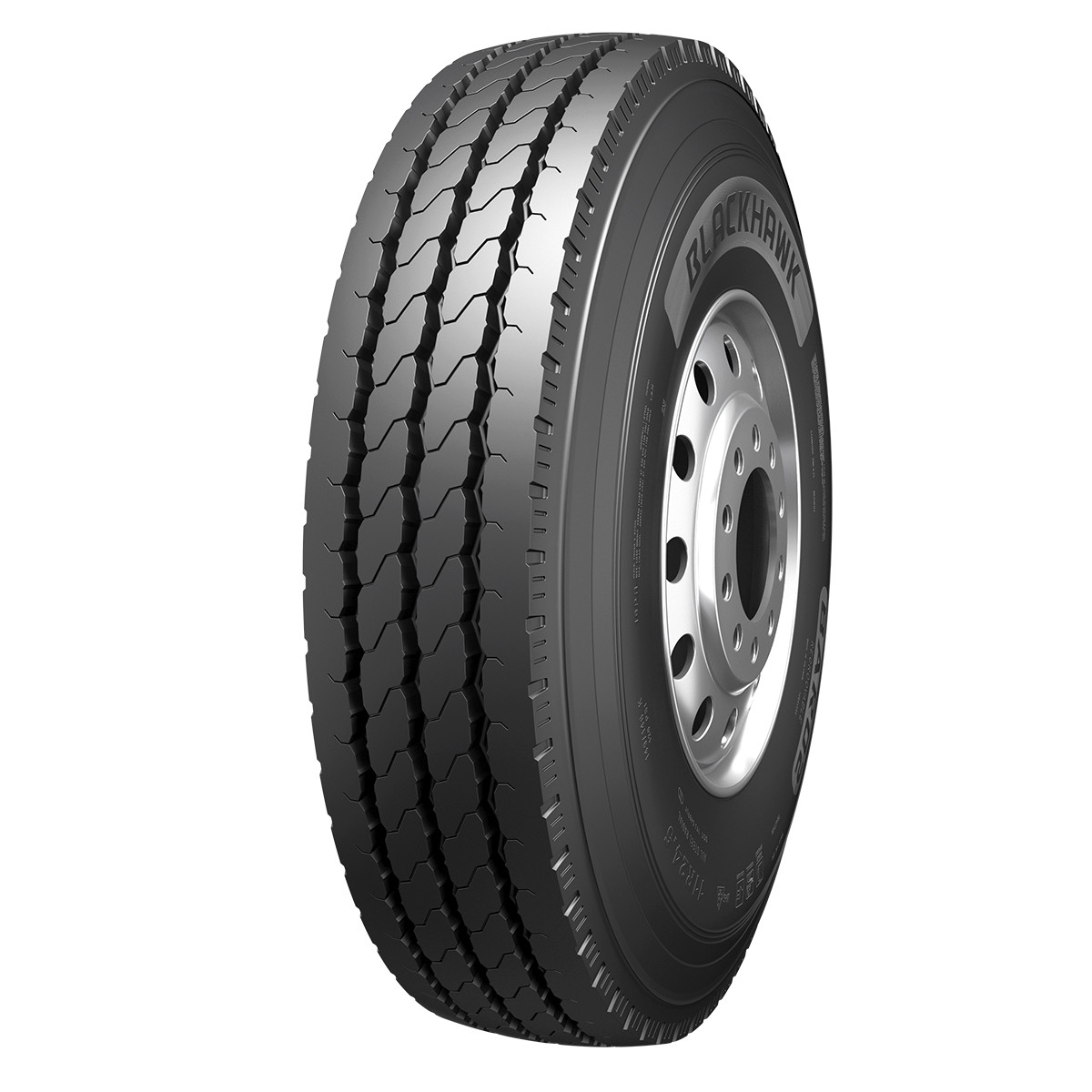

BlackHawk BAR02 255/70 R22.5 143/141K TL 18PR tire is a high-performance, commercial-grade tire designed for durability, safety, and cost efficiency. It’s perfect for long-distance, heavy-duty vehicles like trucks, trailers, and buses. Its combination of strength, load capacity, fuel efficiency, and reliable performance in a variety of conditions makes it a key choice for the demanding needs of the transportation industry.

Here’s a breakdown of what each part of the specification means:

• BlackHawk BAR02 – Brand and model of the tire.
• 255/70 R22.5 – Tire size:
  • 255 – Width of the tire in millimeters.
  • 70 – Aspect ratio (height of the sidewall as a percentage of the width).
  • R – Radial construction.
  • 22.5 – Diameter of the wheel in inches.
• 143/141K – Load index and speed rating:
  • 143/141 – Dual load index rating, meaning:
    • 143 (2,865 kg per tire in a single configuration).
    • 141 (2,575 kg per tire in a dual configuration).
  • K – Speed rating (up to 110 km/h or 68 mph).
• TL (Tubeless) – The tire does not require an inner tube.
• 18PR (Ply Rating) – The tire has an 18-ply rating, indicating its load-carrying capacity and durability.

Tire Construction & Design : BlackHawk BAR02 255/70 R22.5 143/141K TL 18PR

• Radial Construction (R):
  • Radial tires like the BAR02 have internal layers of steel belts placed at a 90-degree angle to the direction of travel. This design allows for better flexibility and performance in terms of durability, heat management, and road contact.
  • Advantage: Radial tires help distribute the forces of weight and braking more evenly across the tire, which improves traction and prolongs tire life. They also contribute to a more comfortable ride compared to bias-ply tires, which is beneficial in commercial vehicles traveling long distances.
• Ply Rating (18PR):
  • The 18-ply rating indicates the tire’s robustness, specifically suited for commercial vehicles that are subjected to heavy loads and long-lasting use. Ply ratings are essentially a measure of the tire's internal strength.
  • Ply construction: This tire likely has a mix of steel and fabric plies. Steel belts enhance the tire's strength and puncture resistance, while fabric plies (like polyester) enhance flexibility and ride comfort.
  • Why it's critical for commercial use: Trucks, buses, and trailers carry significant loads over vast distances, meaning tire construction needs to be highly durable to resist wear and maintain performance. Higher ply ratings ensure the tire can resist damage from road debris, potholes, and constant stress.

Tread Pattern and Rubber Compound

• Tread Design:
  • The BlackHawk BAR02 model features an all-season tread pattern designed for balanced traction and even wear. This means it should perform well across a wide range of road conditions, from dry highways to wet, slippery surfaces.
  • The tread pattern may include wide grooves, deep channels, and lateral sipes for optimal water drainage, which enhances grip in rain or snow and reduces the risk of hydroplaning.
  • The tread design is likely optimized for long tread life, contributing to low rolling resistance and increased fuel efficiency.
• Rubber Compound:
  • The tire uses a tough rubber compound designed for durability and heat resistance, which is essential for commercial vehicles that run for extended periods under heavy loads.
  • Commercial tires like this one are often designed to handle high temperatures from friction between the tire and the road surface. The rubber compound helps manage heat buildup, which can cause tread separation or blowouts in tires that overheat.

Load Capacity and Handling

• Load Index 143/141:
  • This tire is designed to carry heavy loads, with a single tire able to support 4,410 kg (9,725 lbs) and a dual tire configuration supporting 4,080 kg (8,998 lbs) per tire.
  • The load capacity directly impacts a vehicle's ability to safely transport goods, equipment, or passengers without overloading the tire. For instance, in a dual configuration, the total load capacity could exceed 8,000 kg (17,500 lbs) on an axle, making it ideal for heavy-duty trucks or long-haul vehicles.
• Dual vs. Single Configurations:
  • The 143 load index refers to single tire applications, and the 141 load index refers to dual tire configurations (where two tires are mounted side by side on the same axle).
  • In dual configurations, weight is shared between the two tires, which allows for better stability, even wear, and improved safety. This is especially important when the vehicle is fully loaded, which is common for commercial trucks.

4. Speed Rating (K): BlackHawk BAR02 255/70 R22.5 143/141K TL 18PR

• Speed Rating K:
  • The K speed rating means that the tire can safely sustain a maximum speed of 110 km/h (68 mph).
  • This rating is adequate for most long-haul commercial vehicles, which generally travel on highways at speeds under 110 km/h.
  • Although commercial trucks typically don’t reach high speeds, the speed rating ensures that the tire will maintain its structural integrity even when traveling at sustained highway speeds for extended periods.

5. Tubeless Technology (TL):

• Tubeless Tire (TL):
  • Tubeless tires have several advantages over traditional tube-type tires. By not requiring an inner tube, these tires have a lower risk of punctures because if the tire is damaged, the air will slowly leak out, allowing the driver time to react.
  • Ease of maintenance: Tubeless tires are easier to repair, as you can plug a puncture without needing to replace an inner tube. This reduces downtime, which is especially important for commercial fleets that rely on uptime.
  • Tubeless tires also offer better fuel efficiency by reducing rolling resistance. This is a key factor for commercial vehicles looking to lower operating costs over time.

6. Durability and Wear Characteristics : BlackHawk BAR02 255/70 R22.5 143/141K TL 18PR

• Tread Wear:
  • The tread design of the BlackHawk BAR02 tire helps promote even wear over time, which is crucial for commercial vehicles that travel long distances. A tire that wears evenly lasts longer and requires fewer replacements.
  • The rubber compound used is likely optimized for long tread life to reduce the frequency of tire changes and the overall operating cost of the vehicle.
• Heat Resistance:
  • Commercial tires like the BlackHawk BAR02 are built with heat-resistant compounds to withstand the heat generated by constant friction on long-haul routes. This ensures the tire can perform optimally, even under heavy loads, and reduces the risk of tire blowouts caused by overheating.

7. Typical Use Cases

• The BlackHawk BAR02 255/70 R22.5 is designed for:
  • Long-haul trucks: It’s ideal for trucks traveling on highways and long distances, as it balances durability, load-carrying capacity, and fuel efficiency.
  • Buses and Coaches: It’s also well-suited for buses carrying passengers over extended distances, where comfort, load-bearing capacity, and safety are essential.
  • Cargo Trailers and Freight: This tire is perfect for vehicles carrying heavy freight, ensuring the load is safely distributed and handled, even on rough or slippery roads.

8. Advantages for Commercial Fleets

• Fuel Efficiency: The low rolling resistance due to the tread design and rubber compound can help save on fuel costs, an important factor for commercial fleets that cover thousands of miles.
• Cost-Effectiveness: The durable construction and long-lasting tread pattern mean fewer replacements are needed, lowering the overall cost per mile.
• Safety: The combination of high load capacity, stability under dual configurations, and enhanced grip ensures that the vehicle remains safe and stable even under extreme conditions.

9. Environmental Impact

• Rolling Resistance: Reduced rolling resistance means the vehicle consumes less fuel, which not only saves costs but also reduces carbon emissions over time. This is an important factor for commercial fleets looking to reduce their environmental footprint.
