Description

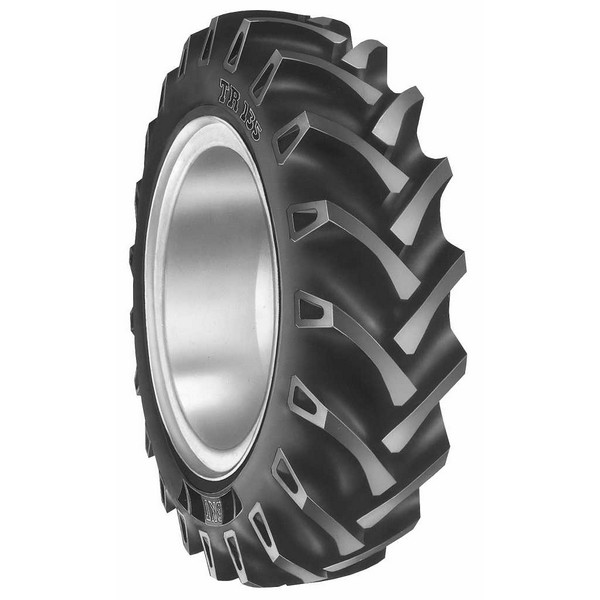

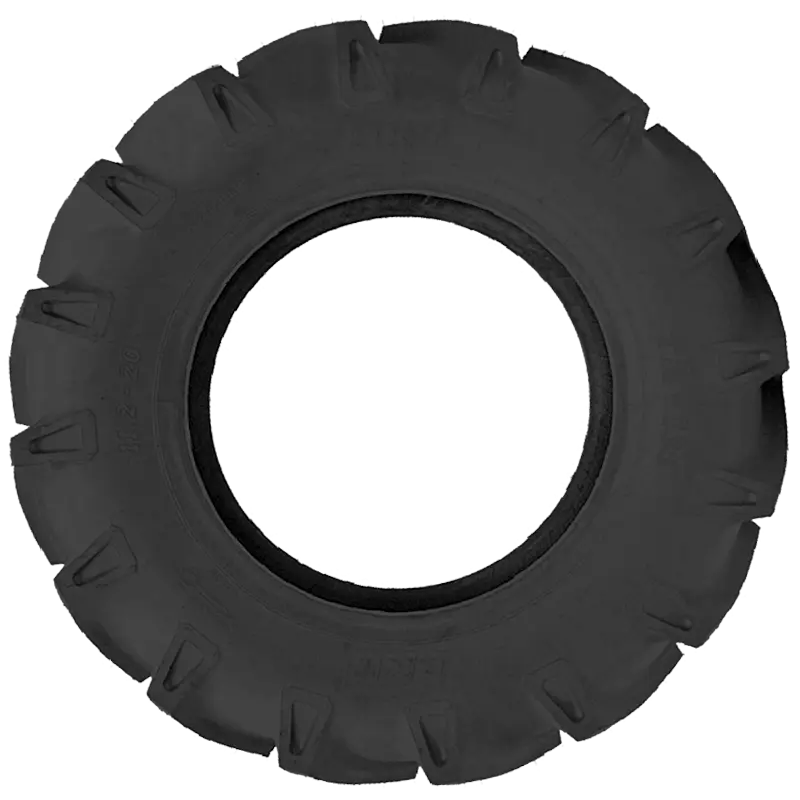

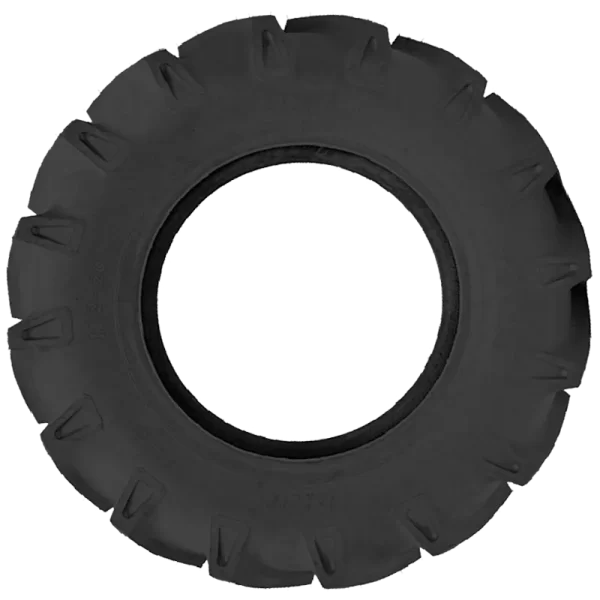

BKT TR-135 9.5-24 TT 8 PLY is a high-performance agricultural tire designed specifically for tractors involved in a variety of field and soil tillage applications. Its rugged build, coupled with advanced engineering, ensures excellent traction, durability, and efficiency in both fieldwork and road operations. This tire is tube-type (TT) and built with an 8-ply rating, offering superior load-handling capabilities and durability for demanding agricultural tasks.

Specifications:

1. Tire Size: 9.5-24
   • Width: 9.5 inches.
   • Rim Diameter: 24 inches.
   • Designed for compatibility with standard agricultural rims.
2. Ply Rating: 8 PLY
   • Provides enhanced strength for medium to heavy-duty operations.
3. Type: Tube Type (TT)
   • Requires the use of an inner tube for inflation.
   • Offers added flexibility and resistance to punctures compared to tubeless designs.
4. Load Index and Speed Rating:
   • 112A6/108A8.
   • Maximum Load Capacity:
     • 1,120 kg (2,469 lbs) at 30 km/h (A6).
     • 1,000 kg (2,204 lbs) at 40 km/h (A8).
5. Tread Depth: 34 mm
   • Deep tread lugs ensure maximum traction and long service life.
6. Overall Diameter: 1,100 mm (43.3 inches)
7. Rolling Circumference: 3,105 mm (122.2 inches)
8. Weight: Approximately 30–35 kg (varies slightly depending on production).
9. Recommended Pressure: 2.1 to 2.3 bar (30–33 psi) for optimal performance.

Features:

1. Tread Design:
   • Features dual-angled tread lugs that provide:
     • Excellent grip and traction in muddy, loose, and wet soil conditions.
     • Smooth performance in road operations, reducing slippage and wear.
   • Enhanced self-cleaning capabilities, preventing soil buildup and maintaining efficiency.
2. Durability:
   • Constructed with an 8-ply rating, ensuring resistance to cuts, punctures, and general wear under heavy loads.
   • The robust casing enhances structural stability and increases operator safety.
3. Traction:
   • Dual-angled lugs ensure superior traction, especially in challenging terrains like soft soil, mud, and clay.
   • Optimized for tasks such as soil tillage, plowing, and spraying.
4. Stability:
   • The wide contact area distributes weight evenly, minimizing soil compaction and improving machine stability during operation.
   • Ensures smoother rides on uneven ground, improving operator comfort.
5. Efficiency:
   • Designed for field and road applications, reducing fuel consumption due to minimized slippage.
   • Long-lasting tread life lowers the need for frequent replacements, reducing overall operational costs.

Applications:

The BKT TR-135 9.5-24 TT 8 PLY is ideal for:

• Agricultural Machinery:
  • Tractors used for soil preparation, plowing, and cultivation.
• Transport Operations:
  • Field-to-road hauling of loads and equipment.
• Challenging Terrains:
  • Wet fields, muddy soil, and hilly terrains.
• Field Maintenance:
  • Spraying, tilling, and other maintenance tasks.

Key Benefits:

1. Extended Tread Life:
   • Durable rubber compound ensures a longer service life, even under heavy usage.
2. Self-Cleaning:
   • Prevents clogging of soil and debris in tread grooves, maintaining consistent performance in various conditions.
3. Operator Comfort:
   • The design minimizes vibrations, offering a more comfortable ride for operators during long working hours.
4. Fuel Efficiency:
   • Reduces rolling resistance, improving fuel economy during both field and road operations.
5. Versatility:
   • Can handle diverse operations, making it a multipurpose solution for agricultural needs.

Maintenance Tips:

1. Regular Pressure Checks:
   • Maintain the recommended pressure of 2.1 to 2.3 bar to ensure optimal performance and tire longevity.
2. Avoid Overloading:
   • Stay within the load capacity limits (1,120 kg at 30 km/h or 1,000 kg at 40 km/h) to prevent structural damage.
3. Storage:
   • Store in a cool, dry area away from direct sunlight and chemicals to prevent rubber degradation.
4. Inspection:
   • Regularly inspect for signs of wear, cuts, or punctures, especially after heavy-duty use.

Comparison with Competitors:

• Advantages:
  • Superior durability with an 8-ply rating compared to some 6-ply competitors.
  • Self-cleaning tread design improves efficiency in muddy and wet fields.
  • Affordable price point for a premium-quality agricultural tire.
• Disadvantages:
  • Tube-type (TT) design may require more maintenance than tubeless options.
